Custom Wire&Cable Extruder

Home / Products / Wire&Cable Extruder

Product Categories

Recommended Products

Wire&Cable Extruder Manufacturers

  • Wire & Cable Extruder
    Wire & Cable Extruder
  • Wire & Cable Extruder
    Wire & Cable Extruder
  • Wire & Cable Extruder
    Wire & Cable Extruder

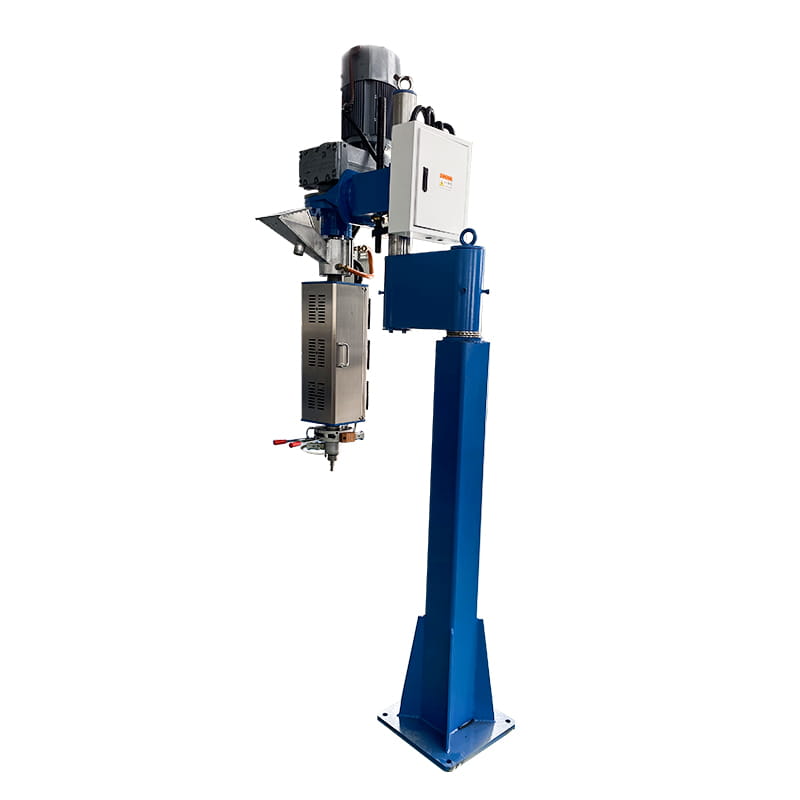

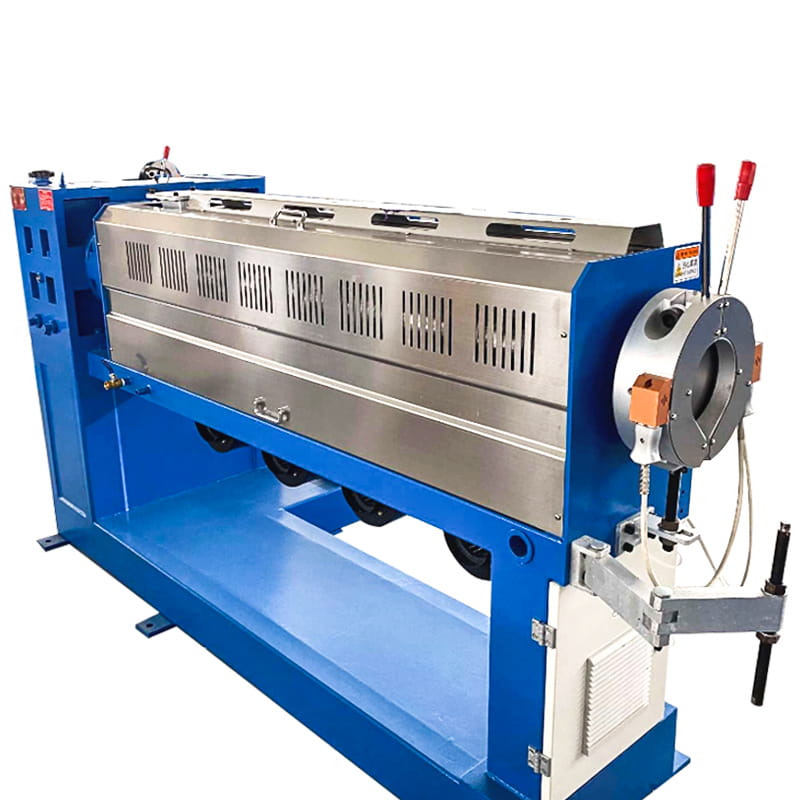

DWD series high effective single screw extruder for wire and cable sheathing is result of our rich experience and advanced technology. Equipped with specialized screw, the extruder can be used in processing different material such as PVC,PE,PBT, Nylon, Lower smoke and no-halogen material as well as fluoroplastics. Mover over, we supply DWMV20/25,DWMV25/25 and DWMV30/25 vertical or horizontal mini extruders and equipments for production of crosslink cable and co-axial foamed cable.
Main characteristics:
(1)    Optimized screw structure to be more suitable for the raw material character
(2)    Gearbox: Cogs has been carbonized, hardened and polished. Compact size, stability of work, low noise and long service life.
(3)    Motor: AC or DC motor can be optional.
(4)    Cooling: Feeding zone by water or the other zones by air.

The Wire&Cable Extruder is the core equipment for producing high-performance insulation and sheathing layers across diverse cable types. Engineered for efficiency and versatility, these extruders excel in processing materials ranging from standard PVC and PE to specialized compounds like PBT, Nylon, LSFH (Low Smoke Free Halogen), and fluoroplastics. Our flagship DWD series high-efficiency single-screw extruder embodies decades of innovation, featuring specialized screw designs optimized for material-specific rheology and consistent output quality.

Complementing the DWD series, our compact DWMV20/25, DWMV25/25, and DWMV30/25 models (available in vertical or horizontal configurations) deliver precision for niche applications, including cross-linked cables and coaxial foamed cables. Every Wire&Cable Extruder in our portfolio integrates critical performance enhancements:

Key Advantages:
Material-Adaptive Screw Geometry: Optimized for thermal stability and uniform melt flow.
Industrial-Grade Transmission: Precision-hardened, polished gear components ensure quiet operation, minimal vibration, and extended service life.
Flexible Drive Options: AC or DC motor compatibility for tailored speed control.
Intelligent Cooling System: Zoned temperature management (water-cooled feeding section + air-cooled barrel zones) for optimal material processing.
From high-volume sheathing to specialized cable solutions, our Wire&Cable Extruder range combines robust engineering with adaptable technology to meet evolving industry demands.


Model

Screw Dia.(mm)

L/D Ratio

Speed of scew(RPM)

Motor Power(kw)

Heating Power(kw)

Heating Zones

Capacity (kg/h)

DWD45

45

25, 30

75-150

11-15

8

3-4

32-55

DWD50

50

25, 30

75-120

15-22

8

3-4

40-65

DWD65

65

25, 30

80-120

18.5-30

12-18

4-5

80-100

DWD90

90

25, 30

70-110

55-90

20-30

6

180-280

DWD120

120

25

70-90

90-132

48

6

300-360

DWD150

150

25

65-80

132-185

70

6

500-650

DWD200

200

25

50-65

250-315

130

7

800-1000

65

Extruder for CCV line

65

20

35

30

10

4

35

90

90

20

42

55

20

4

60

150

150

25

40

132

49

7

250
